User Guide - Project

Aug 9, 2018

Overview

Create properties for backup and restore as a project.

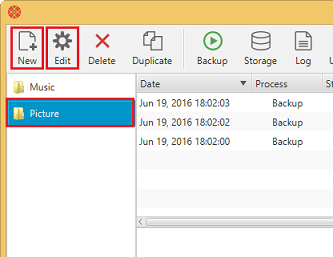

header-project

  • To create a new project, click New button.
  • To update a project, click Edit button.

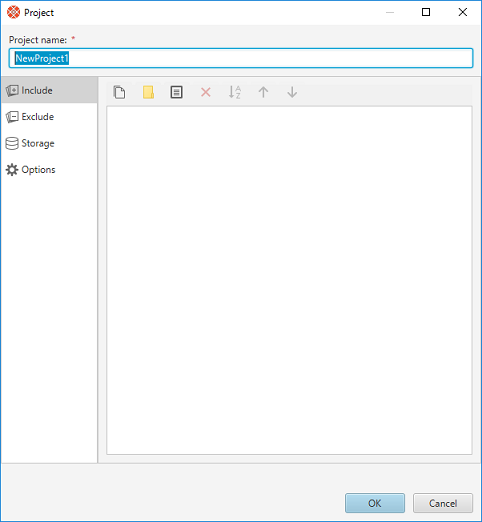

Project name

project-name

Field Required Description
Project name Required

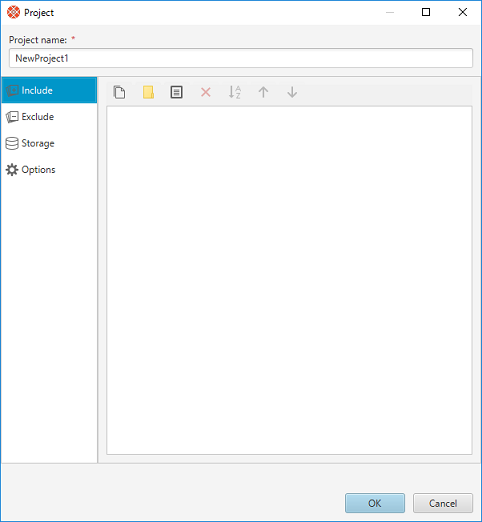

Include

project-include

Field Required Description
Include files   The paths to file and folder to be backup

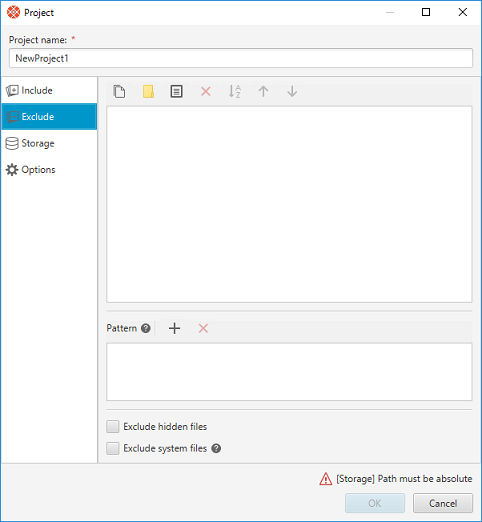

Exclude

project-exclude

Field Required Description
Exclude files   The paths to file and folder to exclude from backup
Pattern   The patterns to exclude from backup
Exclude hidden files   Excludes hidden files
Exclude system files   Excludes system files. This property is applied on Windows.

Pattern

  • An asterisk, *, matches any number of characters (including none).
  • Two asterisks, **, works like * but crosses directory boundaries. This syntax is generally used for matching complete paths.
  • A question mark, ?, matches exactly one character.
  • Braces specify a collection of subpatterns. For example:
    {sun,moon,stars} matches "sun", "moon", or "stars".
    {temp*,tmp*} matches all strings beginning with "temp" or "tmp".
  • Square brackets convey a set of single characters or, when the hyphen character (-) is used, a range of characters. For example:
    [aeiou] matches any lowercase vowel.
    [0-9] matches any digit.
    [A-Z] matches any uppercase letter.
    [a-z,A-Z] matches any uppercase or lowercase letter.
    Within the square brackets, *, ?, and \ match themselves.
  • All other characters match themselves.
  • To match *, ?, or the other special characters, you can escape them by using the backslash character, \. For example: \\ matches a single backslash, and \? matches the question mark.
  • The directory boundary is \\ on Windows, / on Mac and Linux.
  • If the pattern includes ** or directory boundaries, matching will be done against complete path; Otherwise matching will be done against the last path element (file name or directory name).

Pattern Examples

Pattern Matches Does not match
foo C:\dir\foo
/dir/foo
C:\dir\bar
/dir/bar
*.tmp C:\dir\foo.tmp
/dir/foo.tmp
/dir/foo.png
foo?.tmp C:\dir\foo1.tmp
/dir/foo1.tmp
C:\dir\foo.tmp
C:\dir\foo12.tmp
/dir/foo.tmp
/dir/foo12.tmp
*.{tmp,png} C:\dir\foo.tmp
/dir/foo.tmp
/dir/foo.png
/dir/foo.jpg
foo[0-9].tmp C:\dir\foo1.tmp
/dir/foo1.tmp
C:\dir\fooA.tmp
/dir/fooA.tmp
C:\\dir1\\*.tmp C:\dir1\foo.tmp
C:\dir2\foo.tmp
C:\\dir1\\**\\*.tmp C:\dir1\dir2\foo.tmp
C:\dir1\dir2\dir3\foo.tmp
C:\dir2\dir1\foo.tmp
/dir1/*.tmp /dir1/foo.tmp /dir2/foo.tmp
/dir1/**/*.tmp /dir1/dir2/foo.tmp
/dir1/dir2/dir3/foo.tmp
/dir2/dir1/foo.tmp

Storage

Setup a storage which you save backup data.

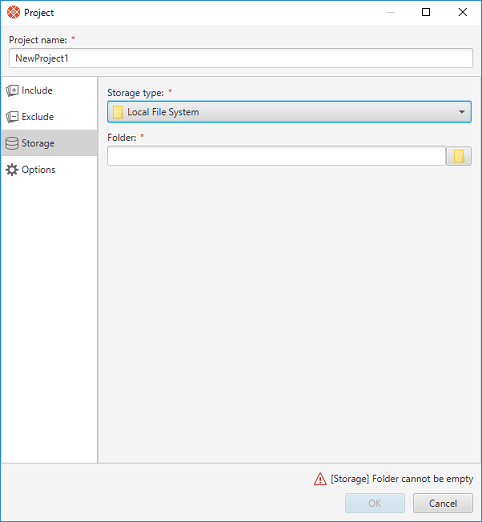

Local File System

project-storage-local

Field Required Description
Storage type Required Local File System
Folder Required The path to folder in which to save backup data
qBackup creates a folder if it doesn't exist.

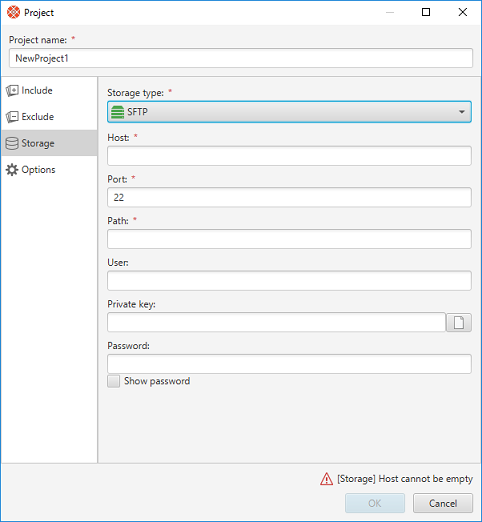

SFTP

project-storage-sftp

Field Required Description
Storage type Required SFTP
Host Required The host name or IP address
Port Required
Path Required The path to folder in which to save backup data
qBackup creates a folder if it doesn't exist.
User
Private key
Password

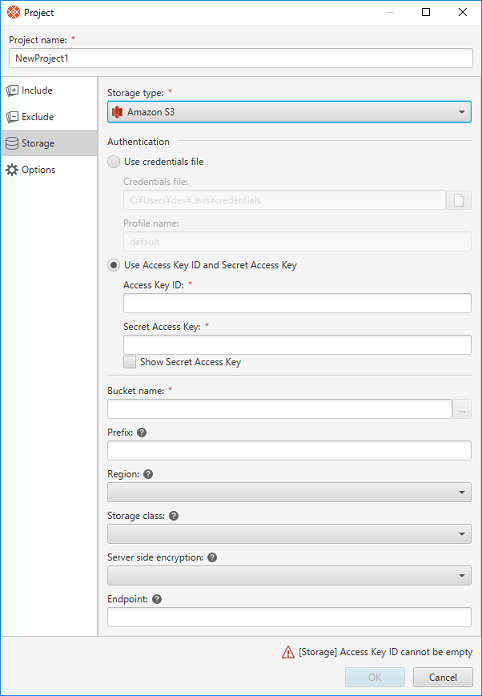

Amazon S3

project-storage-s3

Field Required Description
Storage type Required Amazon S3
Authentication Required
- Use credentials file (Required) The path to credentials file
- Use Access Key ID and Secret Access Key (Required)
Bucket name Required qBackup creates a bucket if it doesn't exist. We recommend that you create a dedicated bucket for qBackup.
Prefix   Specify if you want to create a virtual folder in a bucket. Prefix enables you to share one bucket for multiple projects. If prefix is blank, backup data will be created just beneath a bucket.
Region   Region is applied on creating a new bucket.
Also, the region should be specified when the KMS is specified for server side encryption.
Default region: US_Standard
Storage class   Storage class is applied on creating a new backup data. Storage class is not applied to existing backup data.
Default storage class: Standard
Server side encryption   Server side encryption is applied on creating a new backup data. Server side encryption is not applied to existing backup data.
Endpoint   Usually unnecessary. Specify if you want to use endpoint on creating bucket.

IAM user and Policy

Create IAM user and then apply policy (permissions) at Amazon Web Service web site (AWS Management Console). qBackup needs permissions below.
Effect Resource Action Description
Allow arn:aws:s3:::<Your Bucket Name>
arn:aws:s3:::<Your Bucket Name>/*
s3:GetObject
s3:PutObject
s3:ListBucket
s3:DeleteObject
arn:aws:s3:::* s3:CreateBucket To create bucket automatically
s3:DeleteBucket To delete bucket
s3:ListAllMyBuckets To list all buckets

Example policy

{
"Statement": [
{
"Sid": "statement1",
"Effect": "Allow",
"Action": [
"s3:GetObject",
"s3:PutObject",
"s3:ListBucket",
"s3:DeleteObject"
],
"Resource": [
"arn:aws:s3:::<Your Bucket Name>",
"arn:aws:s3:::<Your Bucket Name>/*"
]
},
{
"Sid": "statement2",
"Effect": "Allow",
"Action": [
"s3:CreateBucket",
"s3:DeleteBucket",
"s3:ListAllMyBuckets"
],
"Resource": [
"arn:aws:s3:::*"
]
}
]
}

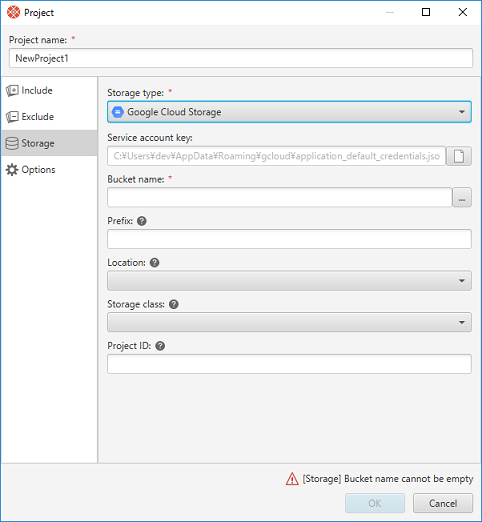

Google Cloud Storage

project-storage-google

Field Required Description
Storage type Required Google Cloud Storage
Service account key (Required) The path to service account key file. Blank for the default path.
Bucket name Required qBackup creates a bucket if it doesn't exist. We recommend that you create a dedicated bucket for qBackup.
Prefix   Specify if you want to create a virtual folder in a bucket. Prefix enables you to share one bucket for multiple projects. If prefix is blank, backup data will be created just beneath a bucket.
Location   Location is applied on creating a new bucket.
Default location: US
Storage class   Storage class is applied on creating a new bucket.
Default storage class: Standard
Project ID   Usually unnecessary. Specify if you get an error about project ID.

Service account key

Create service account key at Google Cloud web site.
  1. Create a service account.
  2. Create a service account key which key type is JSON then download it as a file.
  3. Apply permissions to the service account. qBackup needs permission to access storage.

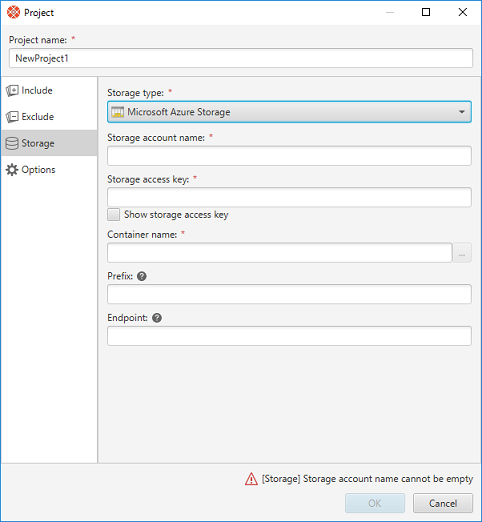

Microsoft Azure Storage

project-storage-azure

Field Required Description
Storage type Required Microsoft Azure Storage
Storage account name Required
Storage access key Required The access key of the storage account
Container name Required qBackup creates a container if it doesn't exist. We recommend that you create a dedicated container for qBackup.
Prefix   Specify if you want to create a virtual folder in a container. Prefix enables you to share one container for multiple projects. If prefix is blank, backup data will be created just beneath a container.
Endpoint   Usually unnecessary. Specify if you want to use custom domain.
(e.g.) http://www.example.com/

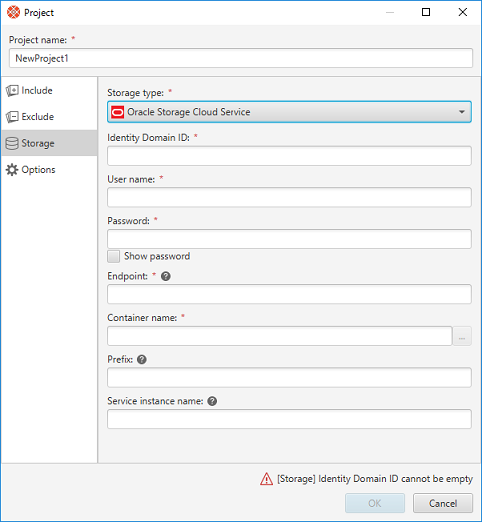

Oracle Storage Cloud Service

project-storage-oracle

Field Required Description
Storage type Required Oracle Storage Cloud Service
Identity Domain ID Required
User name Required
Password Required
Endpoint Required (e.g.) https://foo.storage.oraclecloud.com/v1/Storage-myIdentity3
Container name Required qBackup creates a container if it doesn't exist. We recommend that you create a dedicated container for qBackup.
Prefix   Specify if you want to create a virtual folder in a container. Prefix enables you to share one container for multiple projects. If prefix is blank, backup data will be created just beneath a container.
Service instance name   Specify for non-metered subscriptions. Do not specify for metered subscriptions

Storage type

qBackup supports Standard Storage. Archive Storage is not supported.

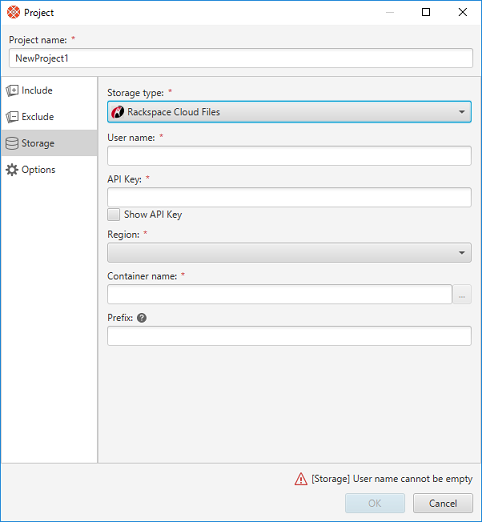

Rackspace Cloud Files

project-storage-rackspace

Field Required Description
Storage type Required Rackspace Cloud Files
User name Required
API Key Required
Region Required
Container name Required qBackup creates a container if it doesn't exist. We recommend that you create a dedicated container for qBackup.
Prefix   Specify if you want to create a virtual folder in a container. Prefix enables you to share one container for multiple projects. If prefix is blank, backup data will be created just beneath a container.

Backblaze B2 Cloud Storage

project-storage-b2

Field Required Description
Storage type Required Backblaze B2 Cloud Storage
Account ID Required
Application key ID   Blank if the application key is a master key
Application key Required
Bucket name Required The bucket name must be unique for the entire Backblaze B2 Cloud Storage. qBackup creates a bucket if it doesn't exist. We recommend that you create a dedicated bucket for qBackup.
Prefix   Specify if you want to create a virtual folder in the bucket. The prefix enables you to create multiple backups in the bucket. If the prefix is blank, backup data will be created just beneath a bucket.

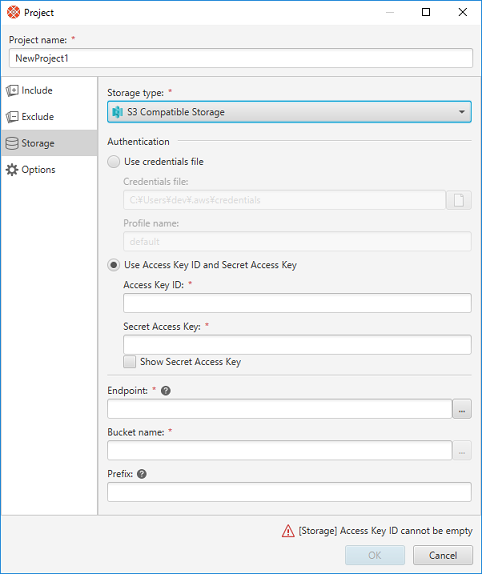

S3 Compatible Storage

project-storage-s3-compatible

Field Required Description
Storage type Required S3 Compatible Storage
Authentication Required
- Use credentials file (Required) The path to credentials file
- Use Access Key ID and Secret Access Key (Required)
Endpoint Required Specify the endpoint which is designated by service provider.
(e.g.) www.example.com
Bucket name Required qBackup creates a bucket if it doesn't exist. We recommend that you create a dedicated bucket for qBackup. Note that some service provider does not support bucket creation from external application. If you get the bucket creation error on backup, create bucket on the service provider web site.
Prefix   Specify if you want to create a virtual folder in a bucket. Prefix enables you to share one bucket for multiple projects. If prefix is blank, backup data will be created just beneath a bucket.

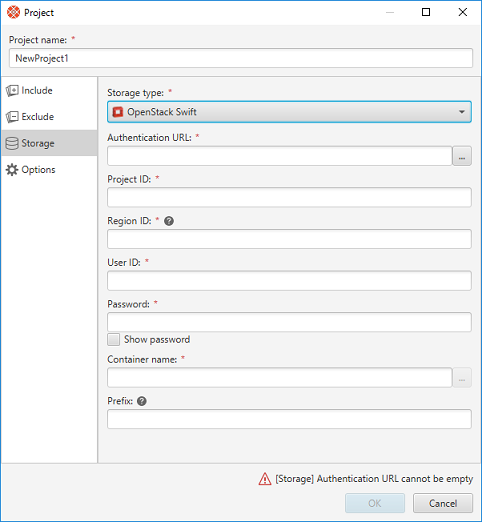

OpenStack Swift

project-storage-swift

Field Required Description
Storage type Required OpenStack Swift
Authentication URL Required (e.g.) https://identity.open.softlayer.com
Project ID Required
Region ID Required (e.g.) dallas, london
User ID Required
Password Required
Container name Required qBackup creates a container if it doesn't exist. We recommend that you create a dedicated container for qBackup.
Prefix   Specify if you want to create a virtual folder in a container. Prefix enables you to share one container for multiple projects. If prefix is blank, backup data will be created just beneath a container.

Identity API

qBackup supports OpenStack V3 Identity API.

Options

project-options

Field Required Description
Storage format   Storage format is applied on first backup. You cannot change storage format after backup.
- Compress   Applies compression
- Encrypt   Applies encryption
- Block size   The block size to read backup source. Deduplication is processed with the block size.
Backup log   The flags to create file logs on backup
Created: Newly created files
Updated: Updated files
Not updated: Files already backed up
Failed: Failed files
Restore log   The flags to create file logs on restore
Created: Newly created files
Updated: Updated files (overwritten)
Not updated: Not updated files (skipped to overwrite)
Failed: Failed files
Max threads Local   Max number of threads to read/write local files
0 for the number of logical CPU cores
Storage   Max number of threads to read/write storage files (objects)
0 for the number of logical CPU cores.
Continue on error   On: Continues backup/restore on error if possible
Off: Stop backup/restore on error
Check file system loops   Checks file system loops. This check cause low performance. Enable only if you encounter any problem.

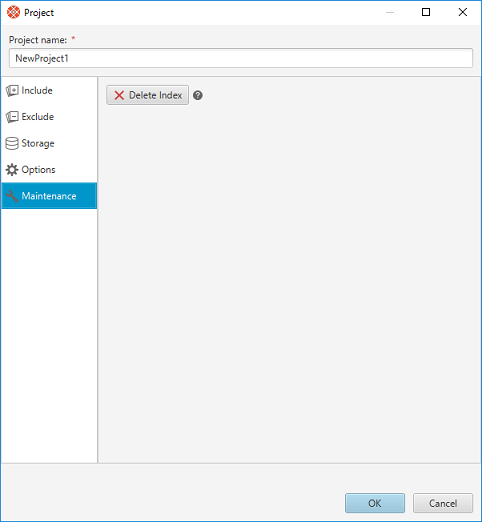

Maintenance

project-options

The maintenance function is displayed when you select an existing project. It is not displayed when creating a new project.

Delete Index

Use this function when an index error occurs. Deleting the index rebuilds the index on the next backup. In addition, there are side effects as follows.

  • The data necessary for rebuilding the index are gotten from the backup destination. If you are using object storage etc., download processing will occur. However, it does not download all the backed up data.
  • All files are processed as "Created". Since the contents of all files are read in the same way as the first backup, processing may take time. However, the backed up data will not be created in the backup destination.
